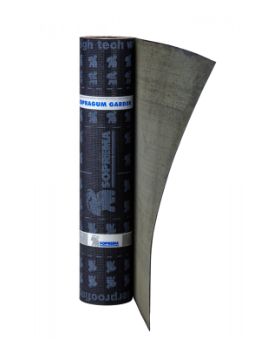

Soprema Sopragum Garden Plus Black Diamond 4mm 10m x 1m x 4mm Roll -10m2

SOPRAGUM GARDEN PLUS 4 is an APP-modified bitumen waterproofing membrane integrated with anti-root additives designed for green roofing, planter boxes and below grade applications.  SOPRAGUM GARDEN PLUS 4 is reinforced with a non-woven polyester combine with fiberglass. The composite reinforcement conveys good mechanical characteristics, excellent dimensional stability, and elastic performance.   SOPRAGUM GARDEN PLUS 4 top surface is coated with anti-adhesive amorphous sand; bottom surface is covered with a thermofusible plastic film.

FIELD OF APPLICATION

SOPRAGUM GARDEN PLUS 4 is suitable as top layer for single-ply or multi-layer waterproofing assemblies in protected systems where root resistance is required. It can be used in vertically and horizontally waterproofing for the following general applications:

• Green Roofs
• Plaza decks
• Planter Boxes
• Retaining Walls

APPLICATION METHOD

SOPRAGUM GARDEN PLUS 4 can be fully heat welded using a propane torch or MINI MACADEN.

INSTALLATION PROCEDURE
SUBSTRATE

• No work should be started until all surfaces are smooth, dry, and free of ice, snow or any other substance that may prevent the
  membrane from adhering properly
• Substrate must have a minimum 1% gradient to ensure that water drains to drainage outlets
• Do not install heat welded membranes directly onto combustible substrate
• Concrete substrate must be fully cured before application of the membrane
• Concrete substrate must have a Concrete Surface Profile (CSP) between 3 and 6 as per International
• Concrete Repair Institute
• Adhesion test is recommended prior to installation of membrane
• Commencement of installation shall be taken as acceptance of the substrate by the Applicator

PRIMING

• When installed as top layer over base sheet membrane, a primer is not required.
• When installed over concrete or metal surface prime with ANTIROCK PRIMER at the rate specified in TDS
